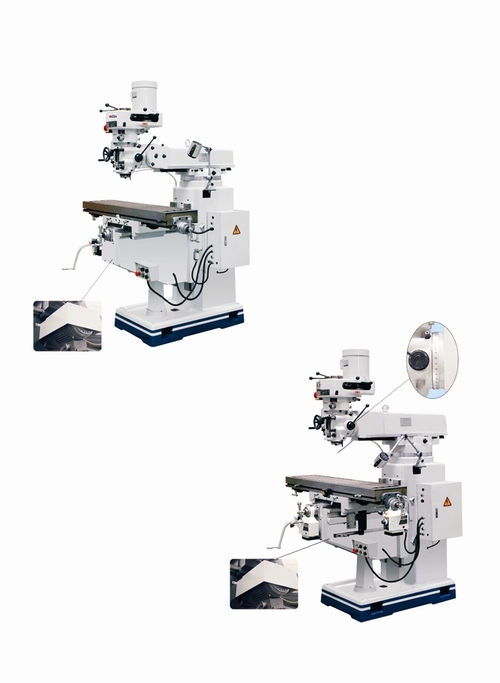

X 6325 D CNC Machine

X 6325 D CNC Machine
X 6325 D CNC Machine
Product Code : 01
Product Description

Specifications:

1. table size - 254*1270     254*1370mm

2. longitudinal travel - 850       950mm

3. transverse travel - 420mm

4. vertical travel - 420mm

5. spindal speed range - (standard ) 16step 65-4500= (opesotinal)65-4200rpm

6. spindel travel -  127mm

7. automotic spindel feeds - 0.04/0.08/0.15

8. distance spindel end to table  surface - 0-405mm

9. distance from spindel axis to coluom -140-609mm

10. spindel taper - (standard);iso40

11. spindel motor power 3.75kw

12. head swivel - 90digree

13. head tilting - fixed

14. machine weight 1590kg
