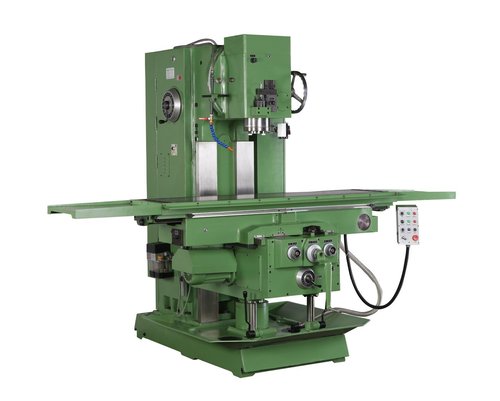

X 5050 CNC Machine

X 5050 CNC Machine
X 5050 CNC Machine
Send Inquiry
Product Code : 01
Product Description

Specifications:

1. Table size -2000*500mm

2. Number/with /distance of t-slot- 5-18-80

3. max,load of table -  1500kg

4. longitudinal travel (manual /auto) - 1530/1520mm

5. transverse travel(manual /auto ) - 360/345mm

6. vertical travel (manual /auto) - 630/610

7. cutting feed speed - x/y ;16-800 z;5-250

8. rapid feed speed - x/y;3000 z ;1000

9. spidel speed range -45-1800rpm

10. spindel speed step - 17( step)

11. spindel tavel - 90mm

12. max. swivel angle of spindel - 45digree

13. distance between spindel noice and table surface - 95-725mm

14. spindel motor power -  15KW

15. overall dimension - 2250*3200*2340mm

16. machine weight - 5200kg
