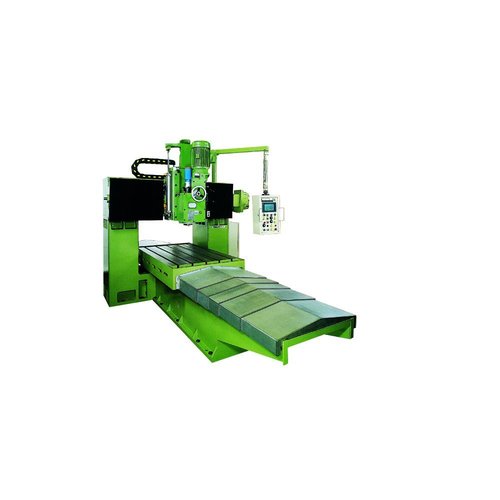

X 2016 CNC Machine

X 2016 CNC Machine
X 2016 CNC Machine
Send Inquiry
Product Code : 01
Product Description

Specifications:

1. table effective size - 4000/6000/8000mm

Width - 1200

2. number width distance of the table  t-slot - 5-28-225

3. max.loed of table - 10000/12000/15000kg

4. max,machining worlpiece size - length -4000/6000/8000mm

   Width- 1600mm

   Height1250mm

5, travel of table - 4200/6200/8200mm

6. gantry width  - 1700

7.milling head - power 7.5kw

                           taper of spindel hole - iso50

                           97-675(6) r/min

8. table feed speed - 60-800mm/min

9. lifting speed of cross beam - 570mm/min

10. overall dimension -  length -10/600/14600/18600mm-width-4050mm- height -3450mm
