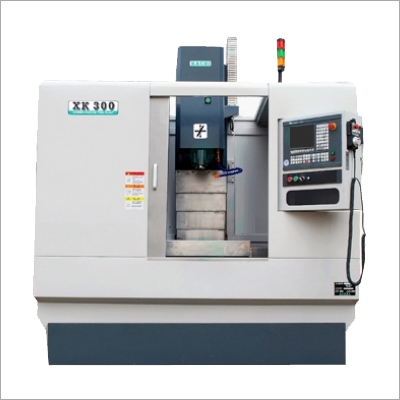

Vertical CNC Milling Machine

Vertical CNC Milling Machine
Vertical CNC Milling Machine
Send Inquiry
Product Code : XK 300
Brand Name : KACHI
Product Description
The Vertical CNC Milling Machine provided by us is high in operational fluency. This machine is extensively used for high speed heavy duty machining and in the manufacturing of molds with high accuracy. Under the stern guidance of our adroit professionals, this machine is manufactured with the finest quality components. Offered machine is rigorously tested by our diligent quality experts before its production. As per the variegated requirement of our clients, we provide this Vertical CNC Milling Machine in different specifications at an pocket-friendly price.

Key Features:

  • Hassle-free operation
  • Optimum performance
  • Longer service life
  • Excellent functionality

Specifications and Parameter

Size of a work table

Mm

700x360

Maximum bearing capacity of the work table

Kg

200

Distance between the spindle and the surface of the work table

Mm

640

Distance between the centerline of spindle and the upright column

Mm

400

Spindle inner hole taper

BT

40

Spindle Speed (Stepless)

R/min

10-4000

Main power

KW

5.5

X axis maximum stroke

Mm

380

Z axis maximum stroke

Mm

420

Y axis maximum stroke

Mm

340

X axis feed speed (Stepless)

Mm/min

10-2000

Z axis feed speed (Stepless)

Mm/min

5-1000

Y axis feed speed (stepless)

Mm/min

10-2000

X axis fast movement speed

Mm/min

6000

Y axis fast movement speed

Mm/min

12000

Max. weight of tools

Kg

3

Dimensions of lathe tool (LxBxH)

Mm

2145x1840x2535

Net weight (about)

Kg

3200
