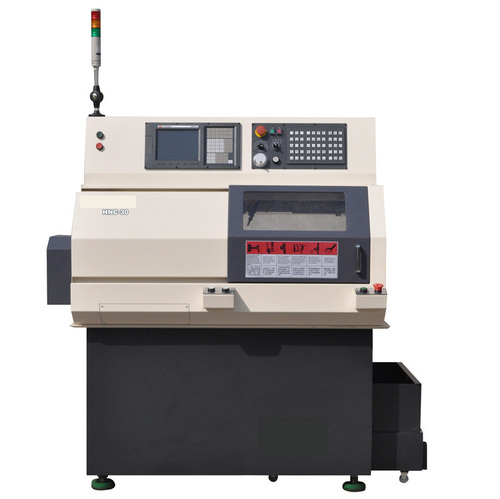

Small High Precision CNC Machine

Our firm has gained the foremost position in this domain by offering premium quality Small High Precision CNC Machine. For manufacturing this machine in accordance with industry standards, our deft technocrats use quality examined components and contemporary techniques. Provided machine is highly demanded for cutting, milling, shaping and other operations in wood as well as metal working. Moreover, our valued clients can purchase this Small High Precision CNC Machine at reasonable prices from us.
Features:
- Energy efficient
- Longer service life
- Easy to operate
- Hassle-free operation
Technical Details:
1. Swing -240mm
2. Swing Over Cross Slide - 120mm
3. Max Turning Dia Meter -100mm
4. Max.Turning Length - 100mm
5. Spindel Speed - Max.6000rpm
6. Thruoght Hole Diametre - 36mm
7. Number Of Spindel Speed Range - Stepless
8. Spring Collet Shank - 36mm
9. X-Axis Rapid Traverse - 18m/Min
10. Z-Axis Rapid Traverse - 18m/Min
11. X-Axis Travel - 250mm
12. Z-Axis Travel - 185mm
13. Spindel Drive Motor - 3.7/5.5kw
14. Feed Motor - 0.75kw
15. Required Electric Power - 6kva
16. Floor Space - 1478*1868*1020mm
17. Height From Floor To Spindel Center - =965mm
18. Mass Of Machine - =1150kg
More Details:
Capacity |
Swing |
240mm |
Swing over cross slide |
120mm |
|
Max. turning diamete |
100mm |
|
Max. turning length |
100mm |
|
Max. bar through -hole |
20mm/30mm |
|
Spindle |
Workpiece clamping method |
After the pull-type clamping |
Spindle end specifications |
A2-2 |
|
Rapid traverse |
X-axis rapid traverse |
18m/min |
Z-axis rapid traverse |
18m/min |
|
Axis stroke |
X-axis travel |
250mm |
Z-axis travel |
185mm |
|
Motor |
Spindle drive motor |
2.2/3.7kW/3.7/5.5kW |
Feed motor |
0.75-1kW |
|
Others |
Turret in the form |
Dovetail row of knives |
Knife party specifications |
16x16 |
|
Number of largest Yung knife |
8 |
|
Cooling motor |
0.09kW |
|
Required electric power |
6kVA |
|
Floor space |
1478x1868x1020mm |
|
Height from floor to spindle center |
960mm |
|
Mass of machine |
1150 kg |
