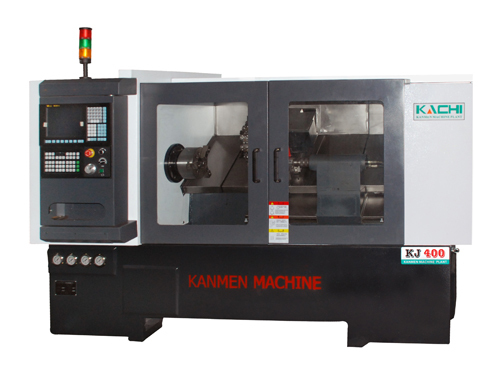

Slant Bed CNC Lathe

Slant Bed CNC Lathe
Slant Bed CNC Lathe
Product Code : KJ 400
Brand Name : KACHI
Product Description

Owing to our strict quality checking procedure, we are able to provide the best grade Slant Bed CNC Lathe. Our offered machine facilitates in hassle free cutting of wood and metal with high precision. With the aid of our skilled professionals, this machine is manufactured using top notch quality components and cutting techniques at our premises. Clients can buy the provided Slant Bed CNC Lathe from us at market leading rates within fixed time frame.

Key points:

  • Longer service life
  • Easy to install
  • High durability
  • User friendly interface

Slant Bed CNC Lathe - KJ-400

Technical Details

  • The CNC system offered with the machine is the latest KND K100Ti-B.
  • Simultaneous 2 Axes control
  • 7" TFT Color Screen.
  • Real Tine Simulation
  • PLC Ladder Display Siondixd Fixed Style for Diagnostic
  • Spindle load Meter.
  • 32kb memory
  • Monual/Auto Re4erence Fbsitian Return
  • Analoq Spindle Control.
  • Metric/Inch Conversion.
  • Online Help
  • Single/ Multiple Reference Position Return
  • Analog Spindle Control
  • Metric/Inch Conversion
  • Online Help
  • Single/Multiple Repetutuve Cycle.
  • Straight/ Taper/ end/pipe thread cutting.
  • Constant Surface Speed Control.
  • Reverse Backlash Compensation
  • Tool Nose Radius Compensation.
  • G-Code Compatibility
  • Electronic Hondwheel
  • nput DI?DO Points.
  • RS232 Interface.
  • U Disk interface
  • US8 Pnrt
Standard Features
  • AC Spindle Drive
  • AC SERVO Digital Drive.
  • Hyd. Chucking.
  • 4 Station Electric Turret with 2 Linear Tool Post
  • Auto & Manual Coolant System.
  • Centralized & Programmable Lubrication.
  • Electricals With Quality Devices & Panel With Cooing Sytem
  • Hyd. Chuck/Pneurnatic Collet
  • Programmable Tailstock
  • Tailstock with Hyd.Quill
Model
Unit
KJ400
Swing over the bed
mm
Φ400
Swing over the carriage
mm
Φ158
Maximum turning length
mm
820 (930) (1000)
Spindle bore
mm
Φ50
Spindle speed (stepless)
r/min
50-4000(50-6000) (50-8000)
Spindle type

A2-5(A2-6)
Spindle taper

No.6
Maximum X axis stroke
mm
220(250)
Maximum Z axis stroke
mm
850 (1020)
X axis feed rate (stepless)
mm/min
5-6000
Z axis feed rate (stepless)
mm/min
5-6000
X axis rapid traverse
m/min
20 (30)
Z axis rapid traverse
m/min
20 (30)
X axis motor power
kW
1.5
Z axis motor power
kW
1.5
Tool cross section
mm
25×25 (20×20)
Main power
kW
7.5 (5.5)
Cooling pump power
W
90 (125)
Tailstock taper

No.4
Maximum quill movement
mm
65
Maximum quill moving speed
m/min
6
Maximum quill stroke
mm/min
850
Positioning accuracy
mm
0.008/0.012
Repetitive positioning accuracy
mm
±0.003
Roughness

Ra0.8
Precision grade

IT6
Dimensions of lathe (L×B×H)
mm
2780×1750×1615
Net weight (approx)
kg
3500
