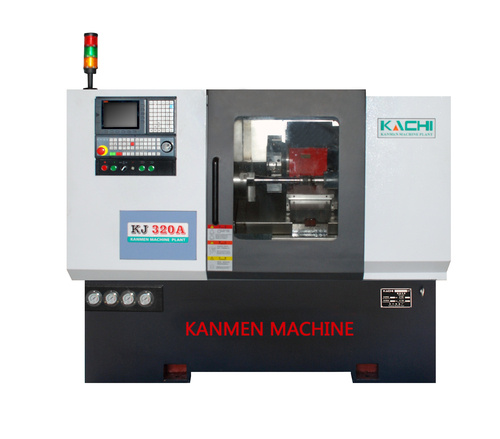

Horizontal Slant Bed Lathes

Horizontal Slant Bed Lathes
Horizontal Slant Bed Lathes
Product Code : KJ 320 A
Brand Name : KACHI
Product Description

Due to our advanced and well-equipped unit, we are able to provide optimum quality Horizontal Slant Bed Lathes. Clients can purchase the offered lathes from us at market leading prices within committed time frame. Using the best grade components and contemporary techniques, these lathes are manufactured by our adept professionals. Widely demanded at woodworking and metalworking workshops, the provided Horizontal Slant Bed Lathes are convenient to be used for cutting, grooving and punching applications.

Key points:

  • Easy to install
  • User friendly interface
  • Needs less maintenance
  • High durability

Horizontal Slant Bed Lathes (KJ 320 A)

1. Swing Over The Bed-400mm
2. Swing Over The Carriage -158mm
3. Max Length -300mm (400mm)
4. Spindel Nose -50mm
5. Spindel Speed -50-4000rpm (50-6000rpm) (50-8000 Rpm)
6. Max.Strock (X Axis) -190mm(240mm)
7. Max.Strock 340mm (440mm)
8. Feed Rate In X Axis -5-6000mm/Min
9. Feed Rate In Z Axis -5-6000mm/Min
10. Rapid Speed In X Axis -20m/Min(30m/Min)
11. Rapid Speed In Z Axis 20m/Min (30m/Min)
12. Servo Motor  Power In X Axis -1.5kw
13. Servo Motor Power In Z Axis  -1.5kw
14. Tool Holder Station -8 (12)
15. Spindel End Type -A2 -5 (A2-6)
16. Spindel Taper Hole -No-6
17. Main Power-5.5 Kw
18. Quill Taper Hole -No-4 (No-5)
19. Max. Strock Of The Quill -65mm
20. Max. Rapid Speed Of The Tailstock -6m/Min
21. Max.Strock  Of The Tailstock -310mm/Min
22. Position Accuracy -0.008mm/0.002mm
23. Repetetive Position Accuracy -0.003mm
24. Raughness-Ra 0.8
25. Processing Accuracy- It6
26. Dimension (L*W*H)-2000mm*1250mm*1520mm
27. Net Weight-2600kg

Product Technical Details:

Model
Unit
KJ320A
Swing over the bed
mm
400
Swing over the carriage
mm
158
Maximum turning length
mm
300 (400)
Spindle bore
mm
50
Spindle speed (stepless)
r/min
50-4000(50-6000) (50-8000)
Spindle type

A2-5(A2-6)
Spindle taper

No.6
Maximum X axis stroke
mm
190 (240)
Maximum Z axis stroke
mm
340 (440)
X axis feed rate (stepless)
mm/min
5-6000
Z axis feed rate (stepless)
mm/min
5-6000
X axis rapid traverse
m/min
20 (30)
Z axis rapid traverse
m/min
20 (30)
X axis motor power
kW
1.5
Z axis motor power
kW
1.5
Tool holder

8 (12)
Tool cross section
mm
25—x25 (20x20)
Main power
kW
5.5
Cooling pump power
W
90 (125)
Tailstock taper

No.4 (No.5)
Maximum quill movement
mm
65
Maximum quill moving speed
m/min
6
Maximum quill stroke
mm/min
310
Positioning accuracy
mm
0.008/0.012
Repetitive positioning accuracy
mm
±0.003
Roughness

Ra0.8
Precision grade

IT6
Dimensions of lathe (L×B×H)
mm
2000x1750x1520
Net weight (approx)
kg
2500
