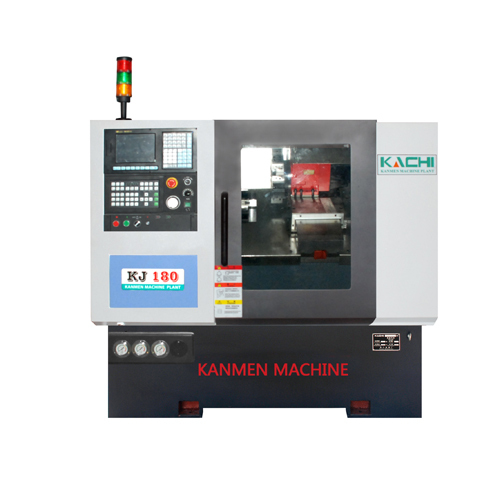

High Precision Slant Bed CNC Lathe

High Precision Slant Bed CNC Lathe
High Precision Slant Bed CNC Lathe
Send Inquiry
Product Code : KJ 180
Brand Name : KACHI
Product Description

With an objective to serve clients in the best possible manner, we manufacture, export and supply quality approved High Precision Slant Bed CNC Lathe. It is manufactured with the use of top notch quality components and contemporary techniques by our adept professionals. In order to cut, punch and shape materials with high precision, the offered machine is highly appreciated to be used in woodworking and metalworking industries. Apart from this, the provided High Precision Slant Bed CNC Lathe can be purchased from us at budget friendly rates.

Key points:

  • Simple installation
  • Longer functional life
  • Negligible maintenance
  • Smooth operations

High Precision Slant Bed CNC Lathe (KJ 180)

  • Swing Over The Bed -400mm
  • Swing Over The Carriege-158mm
  • Max.Length-110mm (180mm)
  • Spindel Nose-50mm
  • Spindel Speed -50-4000rpm (50-6000rpm) (50-8000rpm)
  • Max.Stroke (X Axis)-170mm (240mm)
  • Max.Stroke(Z Axis)-250mm (305mm)
  • Feed Ratein X Axis-5-6000mm/Min
  • Feed Rate Inz Axis5-6000mm/Min
  • Rapid Speed In X Axis -20m/Min (30m/Min)
  • Rapid Speed In Z Axis -20m/Min (30m/Min)
  • Servo Motor Power In X Axis -1.5kw
  • Servo Motor Power In Z Axis -1.5kw
  • Tool Holder Station-6(8)
  • Spindel End Type-A2 -5
  • Spindel Taper Hole-No.6
  • Main Power.3.7kw
  • Cooling Pump Power -90w (125w)
  • Position Accuarcy- 0.008/0.012mm
  • Repetitive Position Accuracy-0.003mm
  • Roughness-Ra0.8
  • Processing Accuracy-It 6
  • Air Pressure -=0.6mpa
  • Dimension(L*W*H)-1550mm*1210mm*1500mm
  • Net Weight (About)-2000kg

Technical Details:

Details   Units Specification
CAPACITY
Max swing diam.Over the bed mm 400
Max swing diam. Over the slide mm 158
Max Turning length mm 180
Max Bar capacity mm 50

SPINDLE
Spindle speed range RPM 50-4000
Spindle end Specification - Screw (A2-5)

RAPID TRAVERSE
Travel (X/Z Axes) mm 170/250
Rapid feed (X/Z Axes) m/min 20/20

MOTOR
Spindle drive motor Kw 3.7
X/Z Axis motor(Servo) Kw 1.5/1.5
Cooling Pump W 90

TOOLS
Tool holder station - 6(8)

 OTHERS
Positioning accuracy mm 0.008/0.012
Overall Dimension (L x W x H) mm 1550x1210x1500
Net weight Kg 2000 kg
