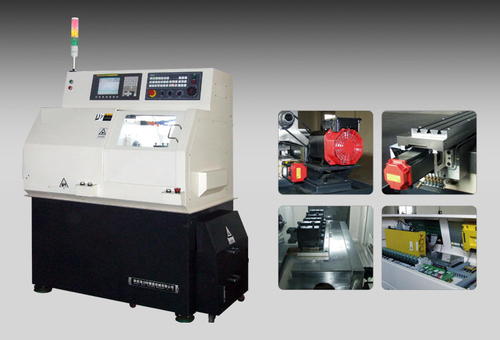

High Precision CNC Lathe Machine

High Precision CNC Lathe Machine
High Precision CNC Lathe Machine
Product Code : HNC 20
Brand Name : KA
Product Description

Since our establishment in this domain, our firm has been engaged in manufacturing, exporting and supplying supreme grade assortment of High Precision CNC Lathe Machine. The offered machine is manufactured under stern guidance of our diligent professionals by utilizing quality-tested components and pioneering techniques. Provided machine is equipped with computer numeric control system and finds application in wood & metal working. Moreover, we offer this High Precision CNC Lathe Machine at highly competitive prices to our clients.

Features:

  • Energy efficient
  • Easy to operate
  • High operational fluency
  • Lower maintenance

Product Technical Details

1. Swing Over Cross Slide -120mm
2. Max.Turning Diameter-100mm
3. Swimg-240 Mm
4. Spindel Speed- Max.6000rpm
5. Thraught Hole Diameter -26mm
6. Number Of Spindel Speed Ranges- Stepless
7. Spring Collet Shank-26mm
8. X.Axis Rapid Traverse -18m/Min
9. Z-Axis  Rapid Travese - 18m/Min
10. X-Axis Travel -250mm
11. Z-Axis Travel - 185mm
12. Spindel Drive Motor - 2.2/3.7kw
13. Feed Motor - 0.75kw
14. Required Electric Power -6kva
15. Floor Space - 1478*1868*1020mm
16. Height From Floor To Spindel Center- =960mm
17. Mass Of Machine - =1150kg

More Details:

Capacity

Swing

240mm

Swing over cross slide

120mm

Max. turning diameter

100mm

Max. turning length

100mm

Max. bar through -hole

20mm/30mm

Spindle

Workpiece clamping method

After the pull-type clamping

Spindle speed range

50-6000 rpm

Spindle end specifications

/A2-2

Rapid traverse

X-axis rapid traverse

18m/min

Z-axis rapid traverse

18m/min

Axis stroke

X-axis travel

250mm

Z-axis travel

185mm

Motor

Spindle drive motor

2.2/3.7kW/3.7/5.5kW

Feed motor

0.75-1kW

Others

Turret in the form

Dovetail row of knives

Knife party specifications

16x16

Number of largest Yung knife

8

Cooling motor

0.09kW

Required electric power

6kVA

Floor space

1478x1863x1020mm

Height from floor to spindle center

960mm

Mass of machine

1150 kg
