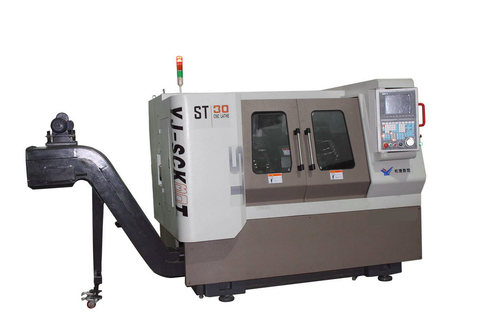

Double Head Lathe Machine

Double Head Lathe Machine
Double Head Lathe Machine
Send Inquiry
Product Code : ST 30
Brand Name : GURU KAIJI
Product Description

Owing to our expertise in this domain, we are instrumental in providing an excellent quality array of Double Head CNC Lathe that can be operated via electronically and computer style interface. Due to ease of setting, operation and performance, this lathe is widely demanded by our clients. It is manufactured with the utmost precision of our deft professionals by employing optimum quality components and advanced methodologies. Besides, the offered Double Head CNC Lathe can be availed from us in diverse technical specifications as per the clients' variegated requirement.

Key Features:

  • Sturdy construction
  • Excellent performance
  • Longer working life
  • Precisely engineered
Specifications:
  • Max.Work -Piece Length - 120-400mm
  • Thro-Hole Diameter  Of Main Shaft - Dia-25-125mm
  • Spindel Speeds Range - 100-3000rpm
  • Spindel Speeds Series - Stepless Speed Changed
  • Spindel Bore Taper - -
  • Spindel End Model No-
  • Max.Z-Axis Travel - 200mm
  • Max.Rapid Traverse Of Axis - 250mm
  • Max.X-Axis  Travel - 1. X-Axis Mm/Min 20000,24000mm/Min
  • Min Setting Unit Of Axis - 0.001 Mm X-Axis 2. 0.001mm Zaxis
  • Main Motor  Power -4kw
  • Clamping Models Of Main Shaft -  Hydraulik
  • Tuurret Type - - Row Tool Holder
  • Tool Size -20mm*20mm
  • Gaideway Types Of X Axis -Linear Gaide Z-Axis -Linear Gaide
  • Mode Of Lathe - 45digree
  • Net Weight Of Lathe - 3600kg
  • Overall Size Of Lathe -3200*1680*1850m

Further Detail:

Double Head CNC Lathe - ST-30

  • The CNC system offered with the machine is the latest KND K100Ti-B.
  • Simultaneous 2 Axes control
  • 7" TFT Color Screen.
  • Real Tine Simulation
  • PLC Ladder Display Siondixd Fixed Style for Diagnostic
  • Spindle load Meter.
  • 32kb memory
  • Monual/Auto Re4erence Fbsitian Return
  • Analoq Spindle Control.
  • Metric/Inch Conversion.
  • Online Help
  • Single/ Multiple Reference Position Return
  • Analog Spindle Control
  • Metric/Inch Conversion
  • Online Help
  • Single/Multiple Repetutuve Cycle.
  • Straight/ Taper/ end/pipe thread cutting.
  • Constant Surface Speed Control.
  • Reverse Backlash Compensation
  • Tool Nose Radius Compensation.
  • G-Code Compatibility
  • Electronic Hondwheel
  • nput DI?DO Points.
  • RS232 Interface.
  • U Disk interface
  • US8 Pnrt

Standard Features

  • AC Spindle Drive
  • AC SERVO Digital Drive.
  • Hyd. Chucking.
  • 4 Station Electric Turret with 2 Linear Tool Post
  • Auto & Manual Coolant System.
  • Centralized & Programmable Lubrication.
  • Electricals With Quality Devices & Panel With Cooing Sytem
  • Hyd. Chuck/Pneurnatic Collet
  • Programmable Tailstock
  • Tailstock with Hyd.Quill
SWING DIAMETER S.A.E. Metric
Over Front Apron 31.75 "  806 mm
Over Cross Slide 20.75 "  527 mm
Over Tailstock 23.0 "  584 mm
CAPACITIES S.A.E. Metric
Chuck Size 10.0 "  254 mm
Max Cutting Diameter 21.0 "  533 mm
Max Cutting Length 26.0 "  660 mm
Bar Capacity 3.0 "  76 mm
Between Centers 30 "  762 mm
TRAVELS & FEEDRATES S.A.E. Metric
X Axis 12.5 "  318 mm
Z Axis 26 "  660 mm
Rapids on X 945 in/min  24.0 m/min
Rapids on Z 945 in/min  24.0 m/min
Max Thrust X 4100 lb  18238 N
Max Thrust Z 5100 lb  22686 N
SPINDLE S.A.E. Metric
Max Rating 30 hp  22.4 kW
Max Speed 3400 rpm  3400 rpm
Max Torque 300 ft-lb @ 500 rpm  407 Nm @ 500 rpm
Spindle Nose A2-6   A2-6
Max Torque w/opt Gearbox 1000 ft-lb @ 150 rpm  1356 Nm @ 150 rpm
TURRET S.A.E. Metric
Number of Tools 12 Stations   12 Stations
OD vs ID Tools Any Combination (will vary with turret style)   Any Combination (will vary with turret style)
Boring Bar Rear Clearance (from back of turret ) 4.0 "  102 mm
GENERAL S.A.E. Metric
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 55 gal  208 L
Machine Weight 13200 lb  5988 k
