Product Code : 05
Product Description

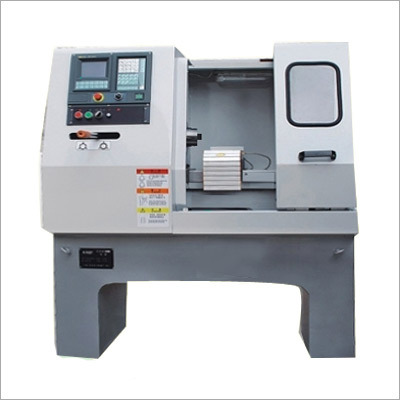

CNC Lathe (CZ 30/40)

1. Swing over the bed-Dia.300 mm.

2. Swing over the plate-Dia.58mm.

3. Max. length-150mm.

4. Spindle nose-Dia.50mm.

5. Spindle speed-300-3000rpm.

6. Max. stroke(X axis)-165mm.

7. Feed rate in X axis-5-6000 mm/min.

8. Feed rate in Y axis-5-6000 mm/min.

9. Rapid speed in X axis-8m/min.

10. Rapid speed in Z axis-8m/min.

11. Servo motor power in X axis-1.2 KW.

12. Servo motor power in Z axis-1.2KW.

13. Spindle end type-screw.

14. Tool bar size-20 x 20mm(25 x 25mm).

15. Main power-3KW.

16. Position accuracy-0.001/0.015mm.

17. Dimension(LxWxH)-1400x1100x1410mm.

18. Net weight-750kg.
