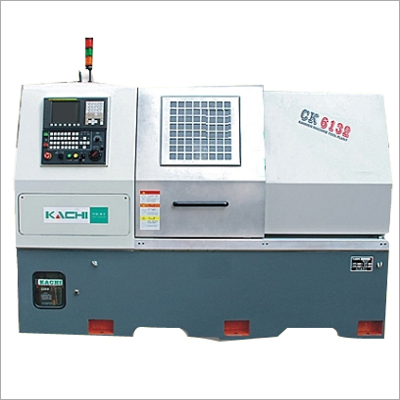

Automatic Slant Bed Lathe

Automatic Slant Bed Lathe
Automatic Slant Bed Lathe
Send Inquiry
Product Code : CK 6132
Brand Name : KACHI
Product Description

We are counted amongst as the leading and renowned manufacturers, exporters and suppliers of excellent quality Automatic Slant Bed Lathe. Widely used in automotive, electrical, mechanical, electronic and many more industries, this lathe machine is highly demanded due to its sturdy construction and easy operation. In order to meet the set international norms, this lathe machine is precisely engineered by our well-versed professionals by making use of quality assured components and modern technology. Also, this Automatic Slant Bed Lathe can be availed from us in diverse specifications as per the clients' requirement.

Key Features:

  • High in functionality
  • Excellent performance
  • Longer service life
  • Robust construction

Specifications and Parameters

Maximum rotary diameter on the bed

Mm

360

Maximum processing diameter on the bed

Mm

320

Spindle bore

Mm

32

Maximum processing length

Mm

400

Processing screw thread metric system

Mm

0.25-12

English system/inch system

Thread/inch

28-3 1/2

Spindle Speed (Stepless)

R/min

300-4000

300-2000

X axis max. stroke

Mm

200

Z axis maximum stroke

Mm

460

X axis feed speed (Stepless)

Mm/min

5-2000

Z axis feed speed (stepless)

Mm/min

10-2000

X axis fast movement speed

Mm/min

12000

Z axis fast movement speed

Mm/min

12000

Tool number


8

Taper of tailstock sleeve


No.4

Tailstock sleeve max. moement

Mm

65

Main power

Kw

5.5

Taper of tailstock sleeve

Mm

2400x1350x1700

Net weight (about)

Kg

4000
